The Mensch Side-Shooter Trailer is used to spread sand, sawdust, compost, manure solids, and aggregates in many applications, including free-stall barns.
The Side-Shooter Trailer uses the main conveyor to transfer the material to a cross conveyor that dispenses the material from 3 ft. to 25 ft.
Side-Shooter Trailer Features
The operator can independently control the speeds of the main conveyor & cross conveyor to accomodate many different types of bedding and moisture content in the bedding. The conveyors can be adjusted quickly and easily with the turn of a dial from inside the cab.
- Load sense hydraulic system
- Hydraulic controlled tank door
- Self-contained hydraulics w/reservoir – just attach driveshaft to PTO
- 540 PTO standard (1000 PTO available)
- 12″ heavy wall tube frame
- Box has 3/16″ sides and ends
- Boxed vertical side braces
- Corner reinforcements
Axles
TANDEM AXLE MODEL
- Walking Beam
- 10,000 lb. Hubs
- Tires 11R 22.5
SINGLE AXLE MODEL
- 22.5 K LB. Hubs
- Tires 385/65 R22.5
Main Conveyor
- 667KC / 88C chain
- AR 400 sprockets
- High torque planetary gearbox drive system
- 3/8″ AR 400 steel top chain wear plates
- UHMW lower chain return
Cross-Conveyor
- Oscillating conveyor
- Unloads in 2 1/2 minutes
- Can unload 3 – 25 ft.
- Dispenses material from either side
- Agressive positive drive belt
- 5/8″ AR 400 steel wheels
Cross Conveyor
- Remote control for all features
- Flotation tires
- Ladder
- 1,000 RPM PTO (540 RPM PTO standard)
- Poly sides
- Height extensions for added capacity
- Agitator
- Single axle
- Rubber-belted model
- Rear discharge
- Tractor-run hydraulics (no pump on trailer)
LEARN MORE ABOUT THE 16 FT TRAILERS
LEARN MORE ABOUT THE 12 FOOT TRAILERS
| MODEL | MATERIAL | CAPACITY STRUCK | CAPACITY HEAPED | LENGTH | WIDTH | HEIGHT | TANK LENGTH | SIDE ANGLE | CHAIN WIDTH | EMPTY WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| yd (m) | yd (m) | in (cm) | in (cm) | in (cm) | in (cm) | deg | in (cm) | lb (kg) | ||

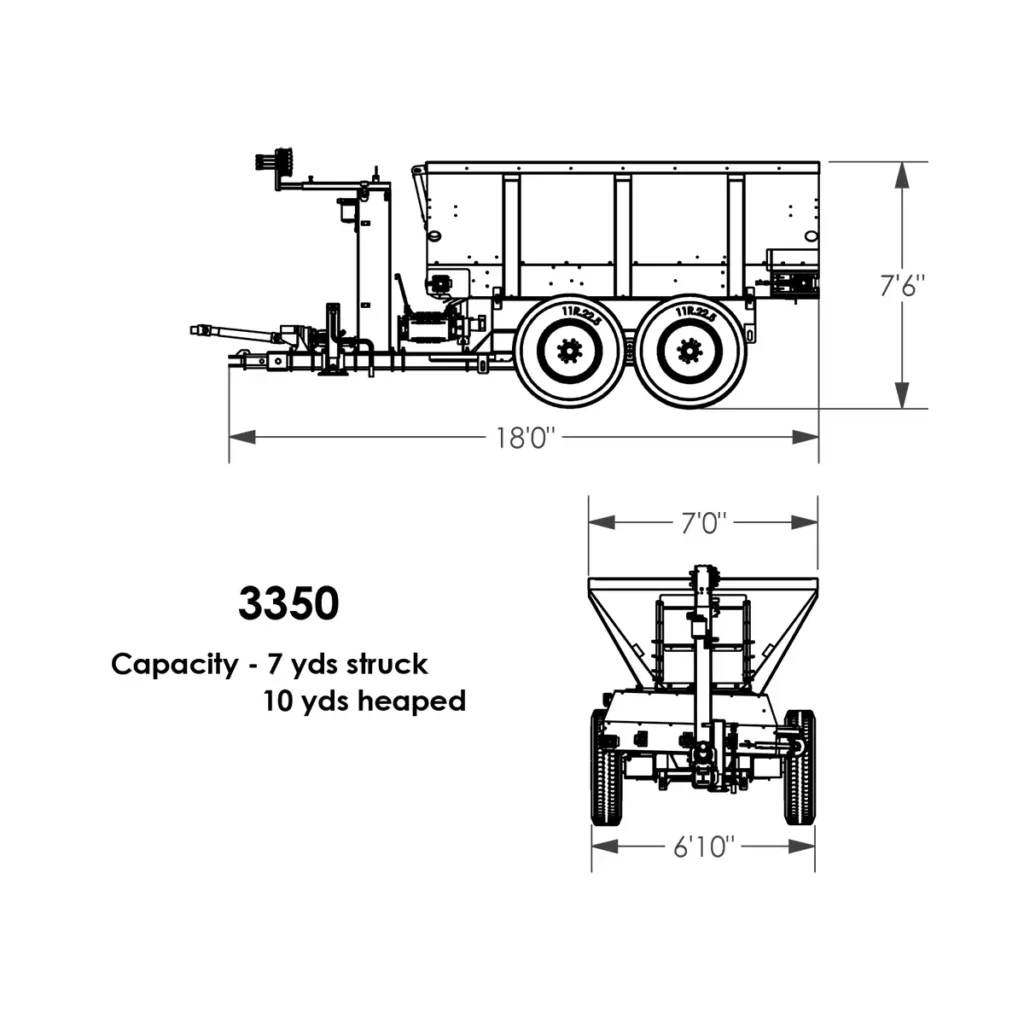

| 3350 | Sand | 7 (5.3) | 10 (7.7) | 208 (529) | 84 (214) | 90 (229) | 144 (366) | 54 | 30 (76) | 8075 (3665) |

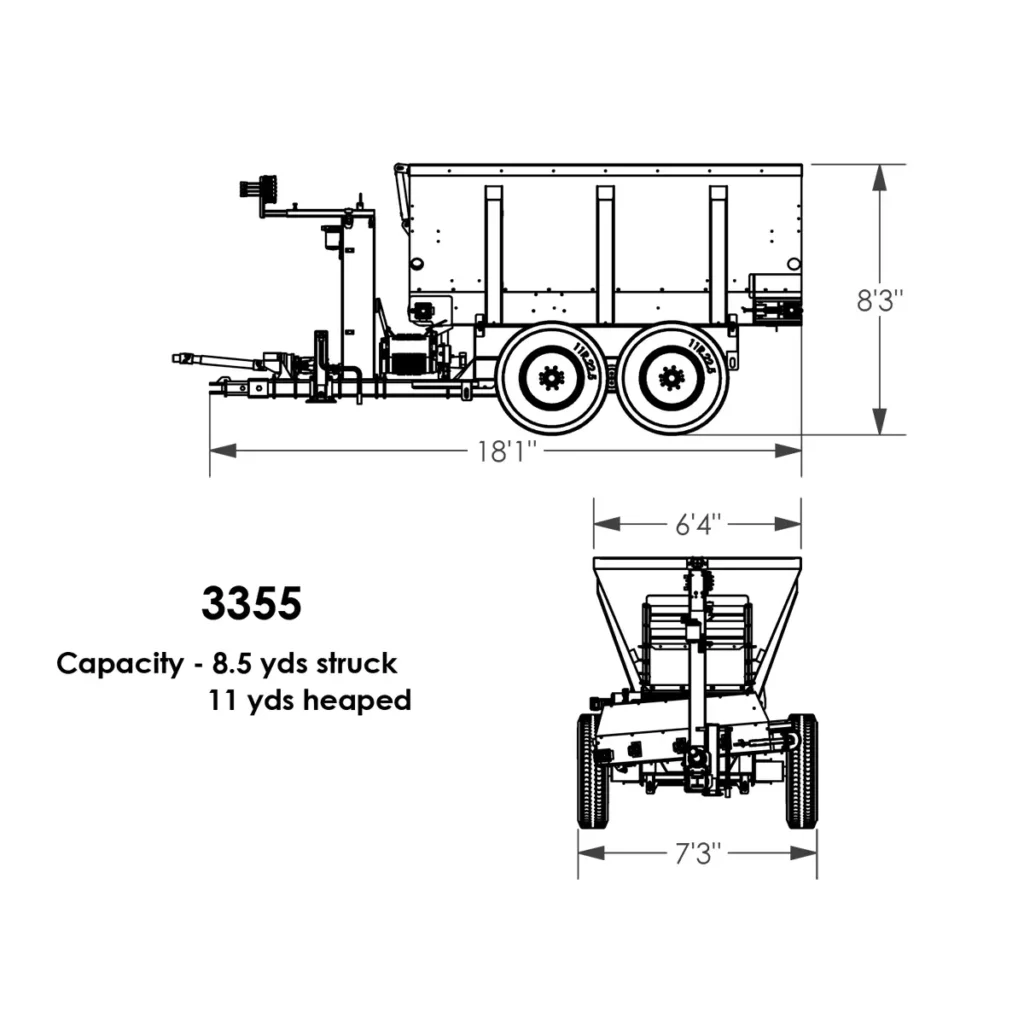

| 3355 | Sand/Sawdust | 8.5 (6.5) | 11 (8.4) | 208 (529) | 87 (221) | 99 (252) | 144 (366) | 68 | 36 (92) | 8450 (3835) |

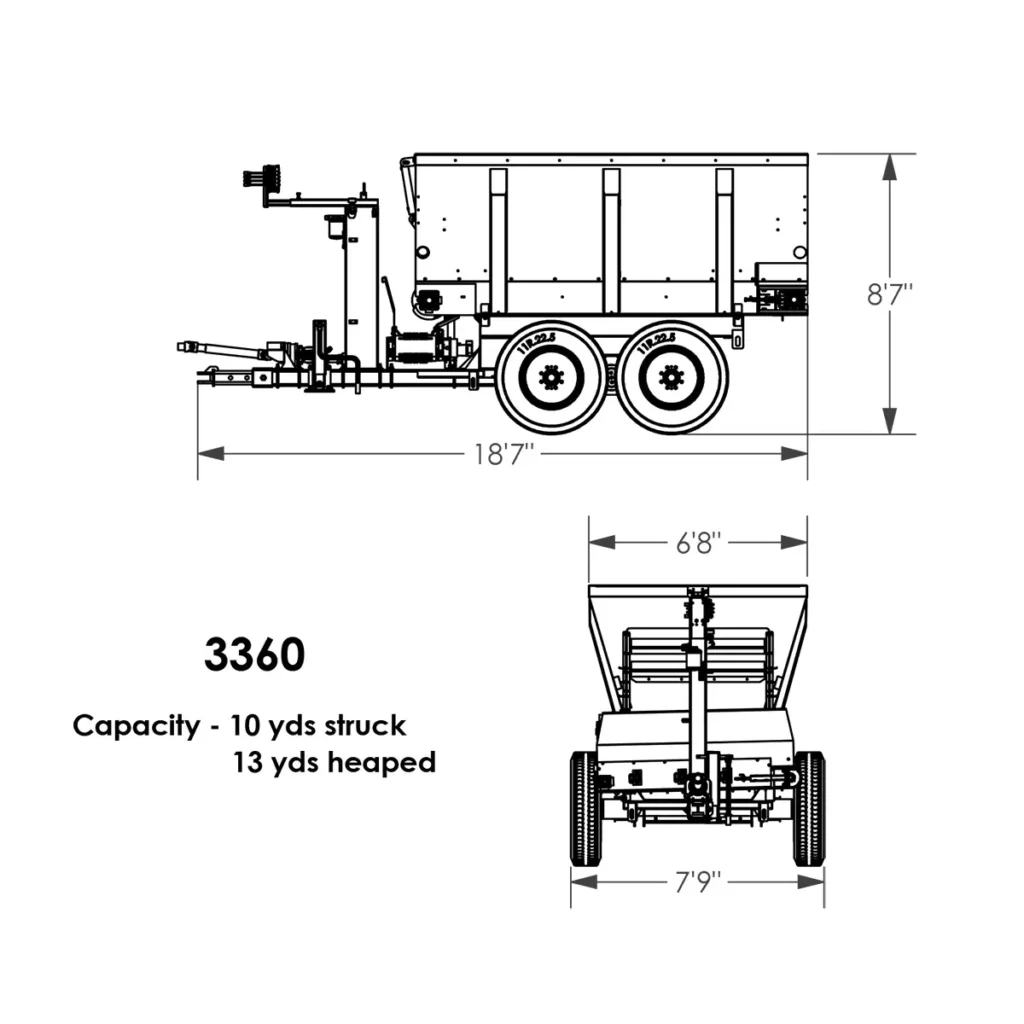

| 3360 | Sawdust | 10 (7.7) | 13 (10) | 217 (551) | 93 (236) | 102 (259) | 144 (366) | 73 | 48 (121) | 9880 (4480) |
| 3380 | Sawdust | 11.5 (8.8) | 15 (11.5) | 256 (650) | 90 (229) | 99 (252) | 192 (489) | 68 | 36 (92) | 9080 (4120) |

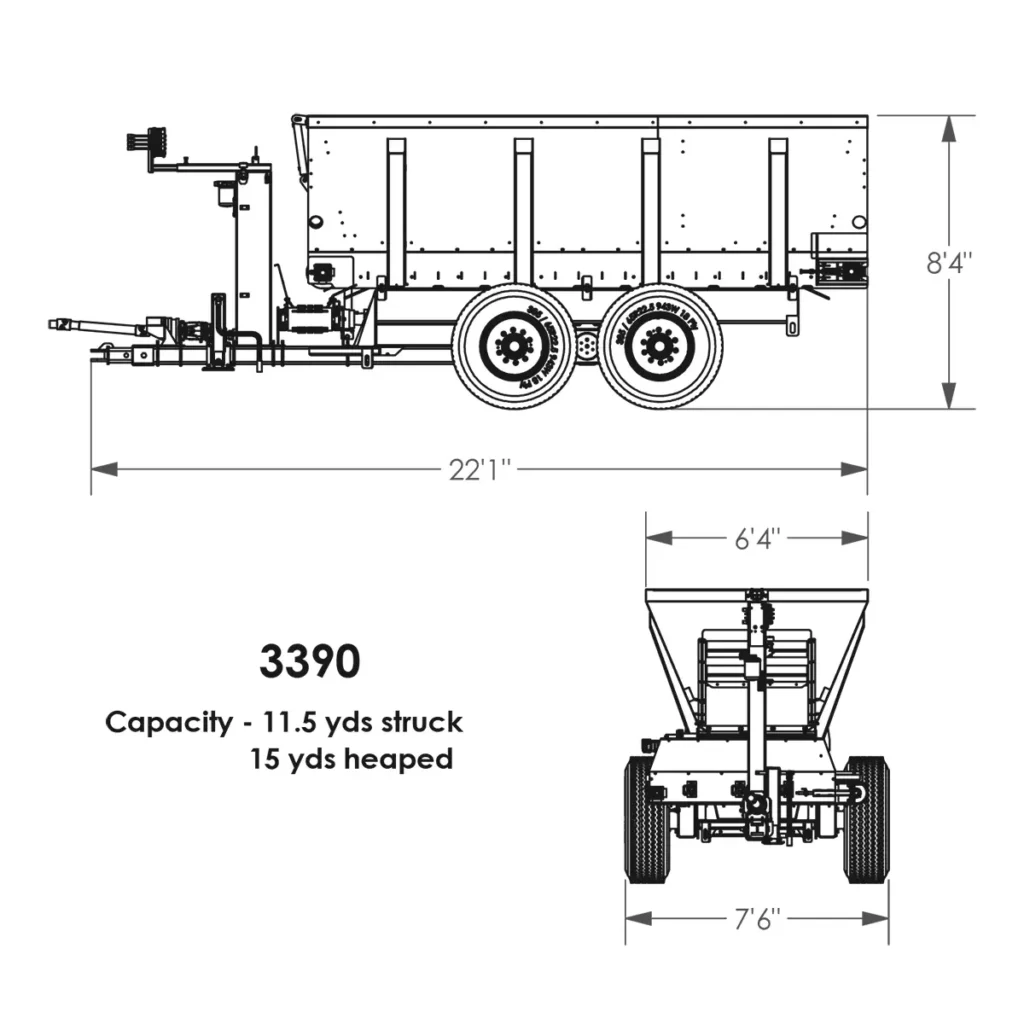

| 3390 | Sand/Sawdust | 11.5 (8.8) | 15 (11.5) | 256 (650) | 90 (229) | 99 (252) | 192 (489) | 68 | 36 (92) | 11400 (5170) |

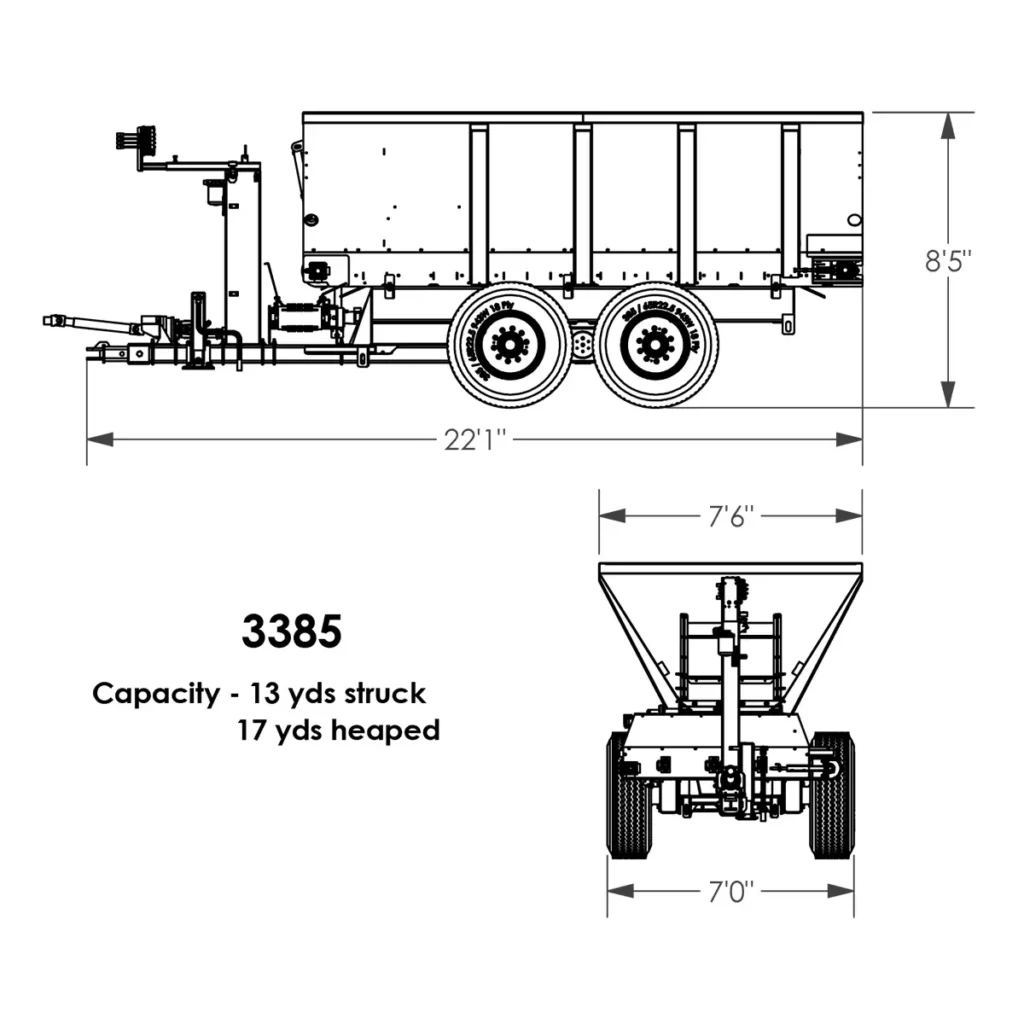

| 3385 | Sand | 13 (10) | 17 (13) | 256 (650) | 90 (229) | 100 (254) | 192 (489) | 58 | 30 (76) | 11400 (5170) |
